This feature enables a Provider Data Scientist /Business Analyst/Data Engineer to execute the following actions in the Bristlecone NEO® Platform

  • Create Data Pipeline
  • Delete Data Pipeline
  • Refresh: Refreshes the Data Pipeline list to populate the most recently created Data Pipelines
  • Export Data: Exports all the pipeline list in Excel format
  • Column Chooser: Displays selected columns
  • Run a Data Pipeline: On demand trigger a Data Pipelinee
  • Schedule a Data Pipeline: The Data Pipeline can be scheduled to be trigged at a specified
  • Clone Data Pipeline: Copy/Clone an existing pipeline
  • Edit Data Pipeline

Create Data Pipeline

The following are the parameters to create a Data Pipeline:

  • Pipeline Name: A unique name of the Pipeline to be created
  • Pipeline Description: A brief description on the Data Pipeline to be created
  • Data Pipeline Type: There are two types of Data Pipeline Executions
    • Batch : Enables the user to design the Data Pipeline to run in a specific timeline

    Ex: 12 a.m. on Every Monday

    • On File Drop: Enables the user to design the Data Pipeline for real time data ingestion

    Ex: IOT, web stream data

  • Data Source Path: The source path from where the Data Pipeline execution will trigger
  • Execution Flow: Define Execution Flow

For expansive features and functionalities, please refer to Creating a Data Pipeline section

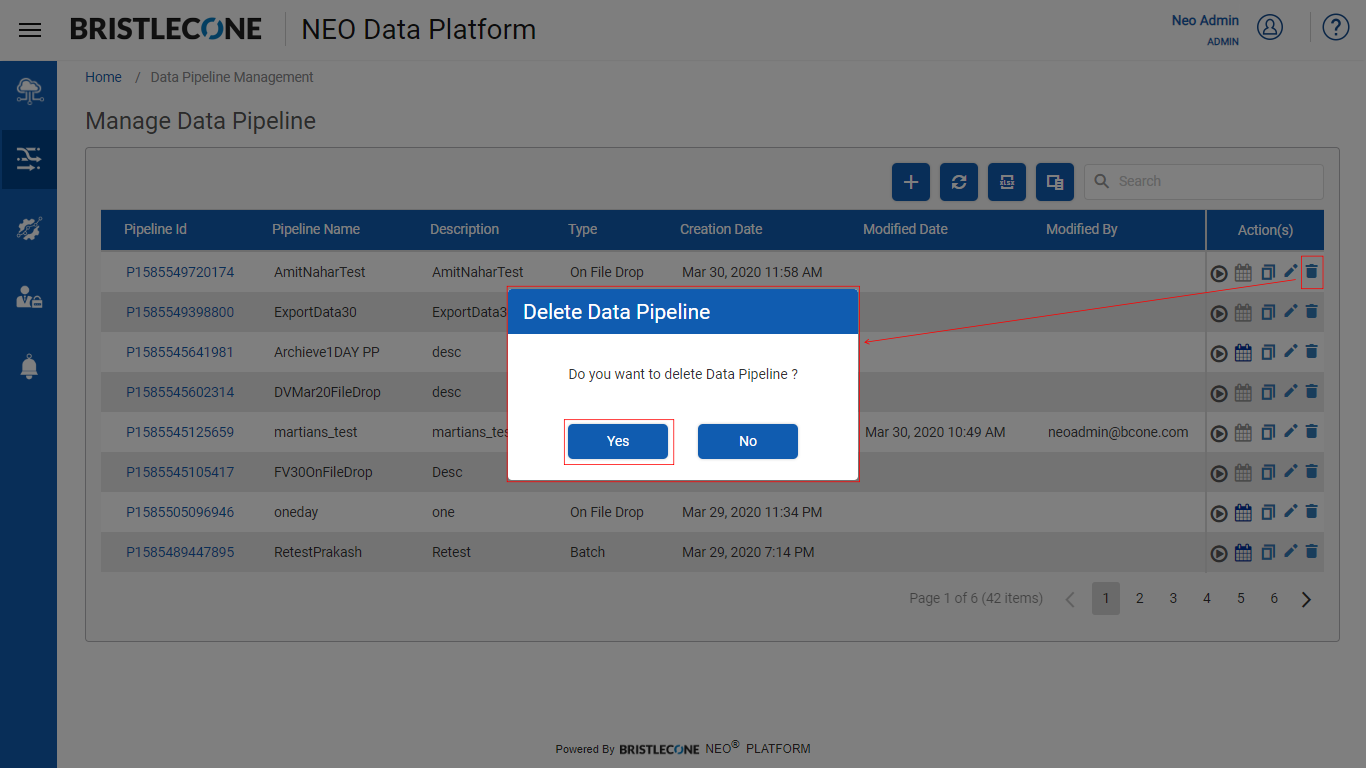

Delete Data Pipeline

To delete a Data Pipeline, click on individual Delete icon and click on Yes Button to confirm the deletion

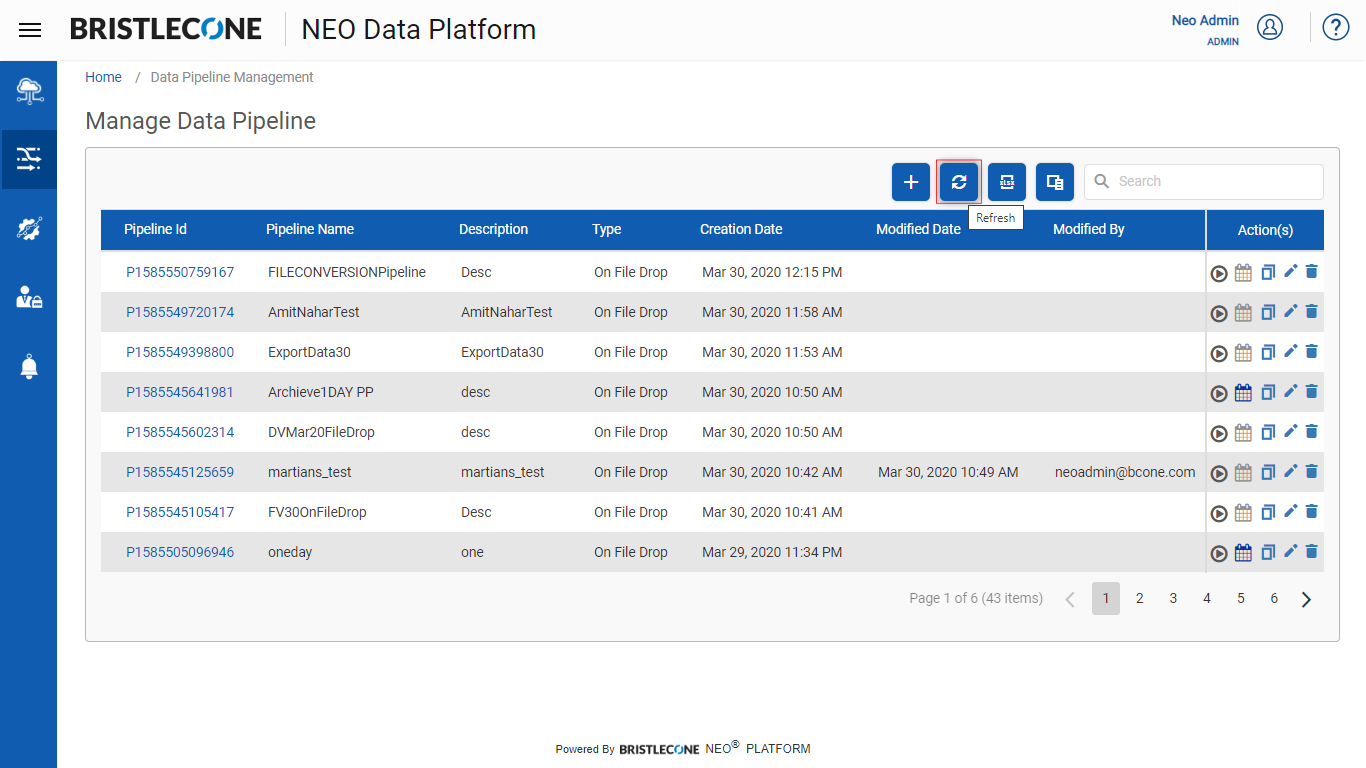

Refresh Data Pipeline

To refresh data pipeline list, click on Refresh icon

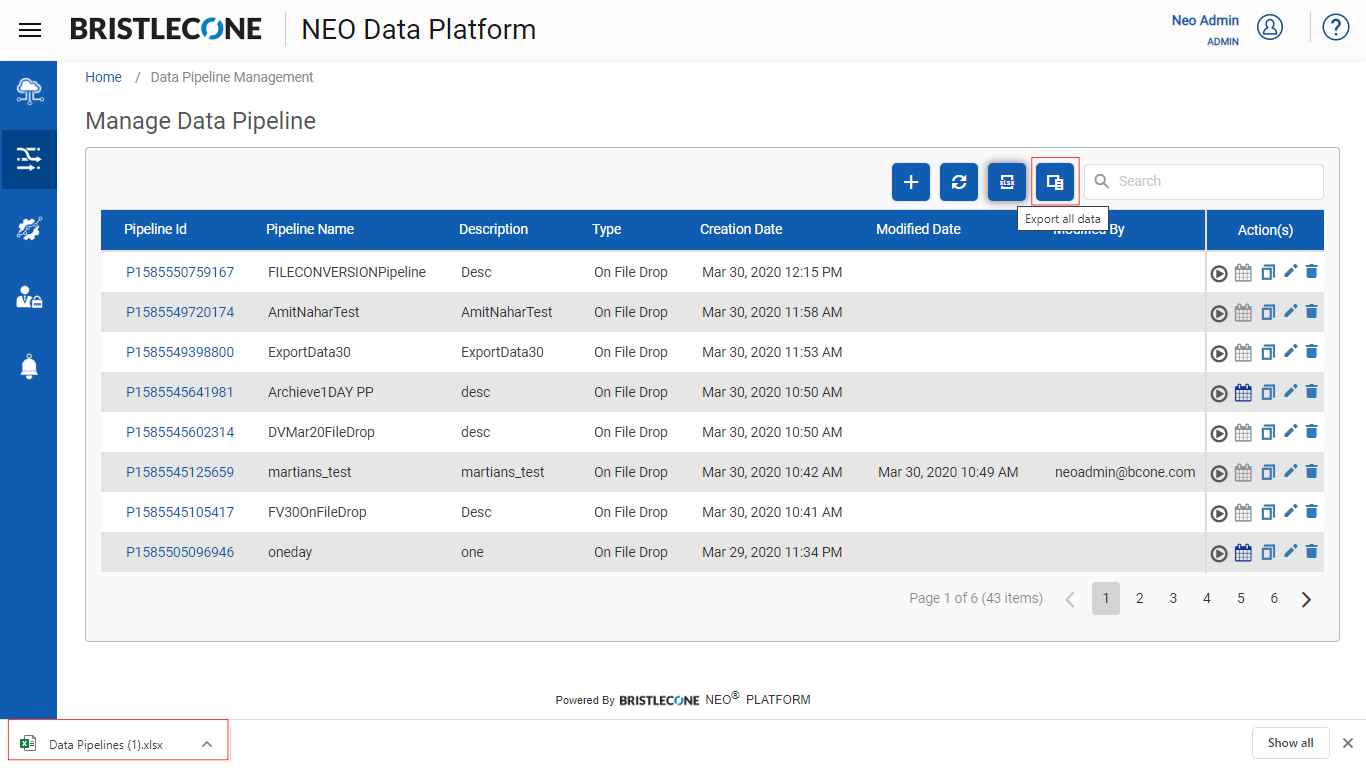

Export all Pipeline

To export all the pipeline detailed list in excel format, click on Export icon. The list will be downloaded to local system

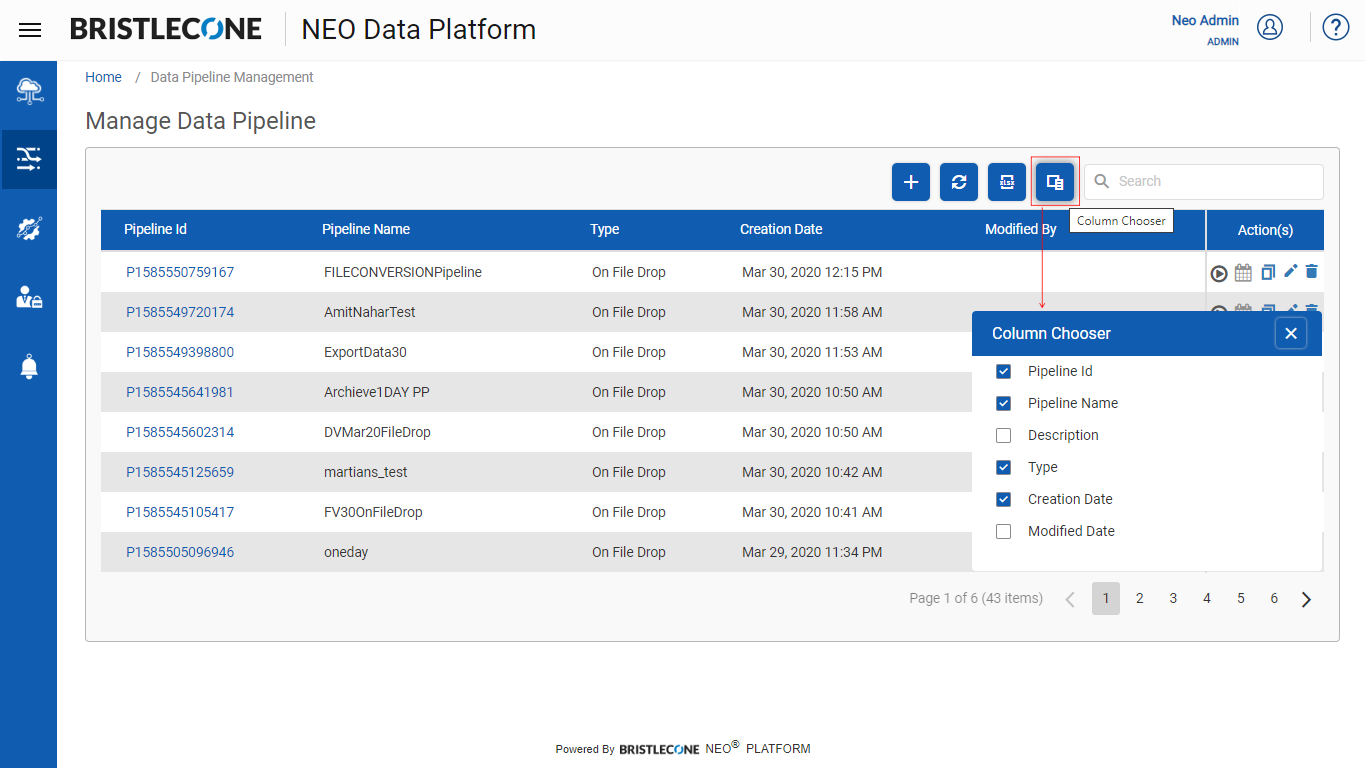

Column Chooser

This feature displays the columns where the checkboxes are selected inside column chooser panel as shown below


Run a Data Pipeline

This feature enables a Provider Data Scientist /Business Analyst/Data Engineer to trigger a Data Pipeline on Demand

For expansive features and functionalities, please refer to On Demand Trigger section on Triggering a data Pipeline module

Schedule a Data Pipeline

This feature enables a Provider Data Scientist /Business Analyst/Data Engineer to schedule a Data Pipeline to be trigged at a specified date/time

For expansive features and functionalities, please refer Scheduled Trigger section on Triggering a data Pipeline module

Clone a Data Pipeline

This feature enables a Provider Data Scientist /Business Analyst/Data Engineer to copy/clone an existing pipeline

For expansive features and functionalities, please refer to Clone Pipeline section in Creating a data Pipeline module.

Edit Data Pipeline

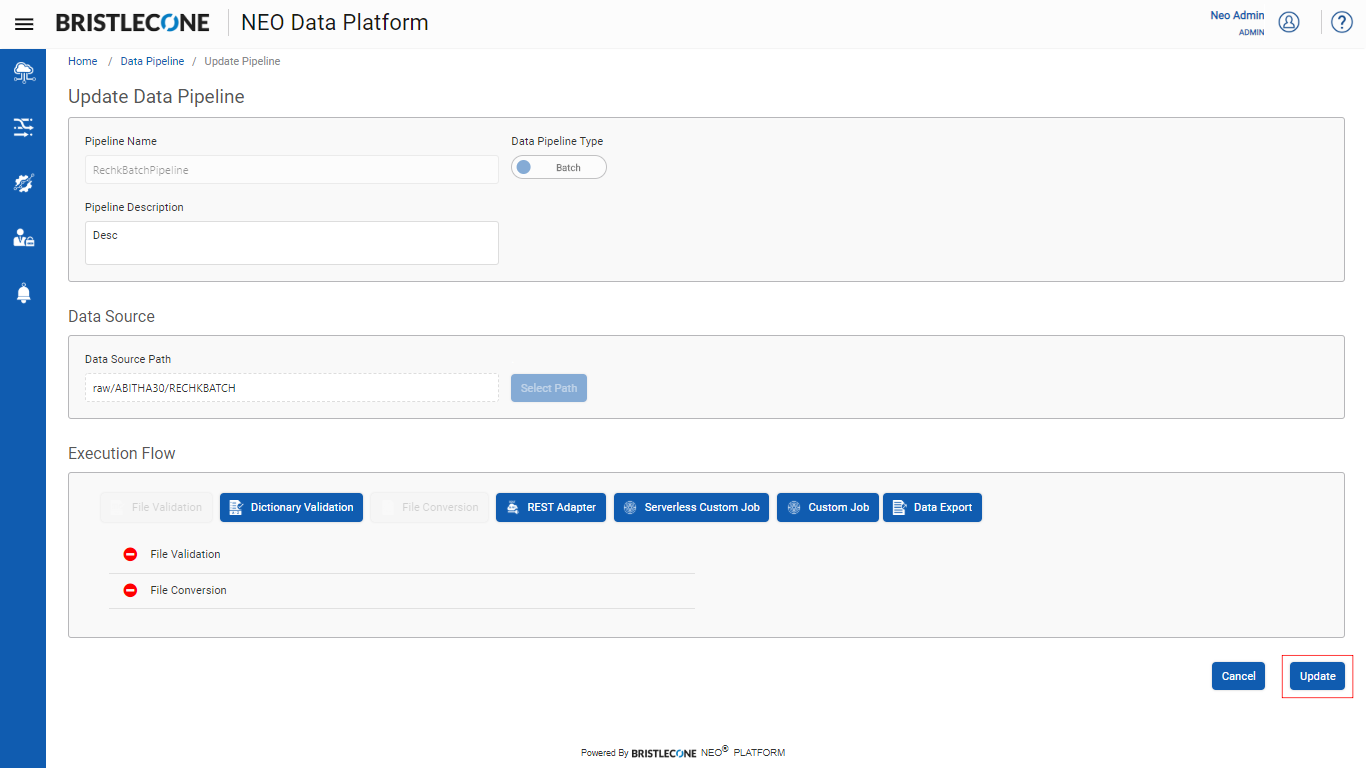

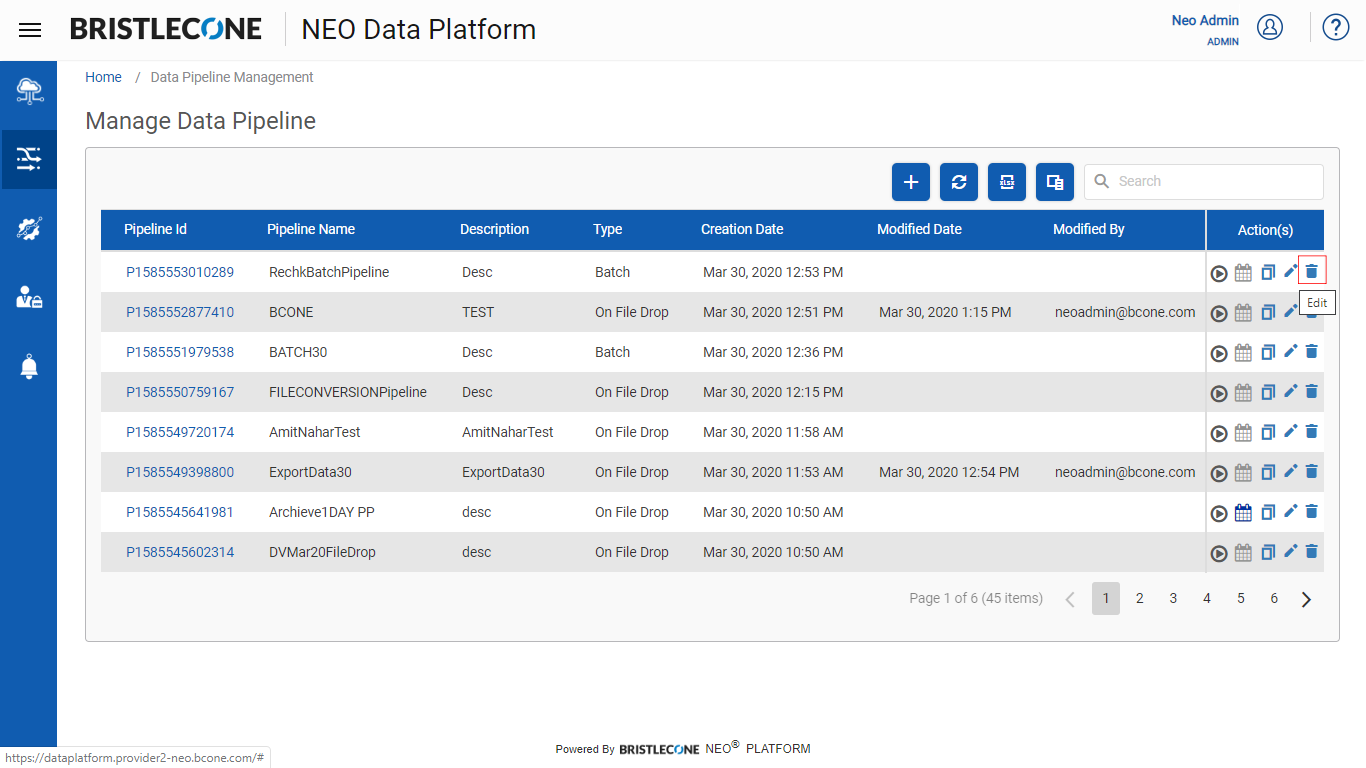

Step 1: To edit a Data Pipeline, click on Edit icon of the individual Pipeline


Step 2: Update the parameters as needed and click on Update button
